GERSTUNG Aerosol Crimpers

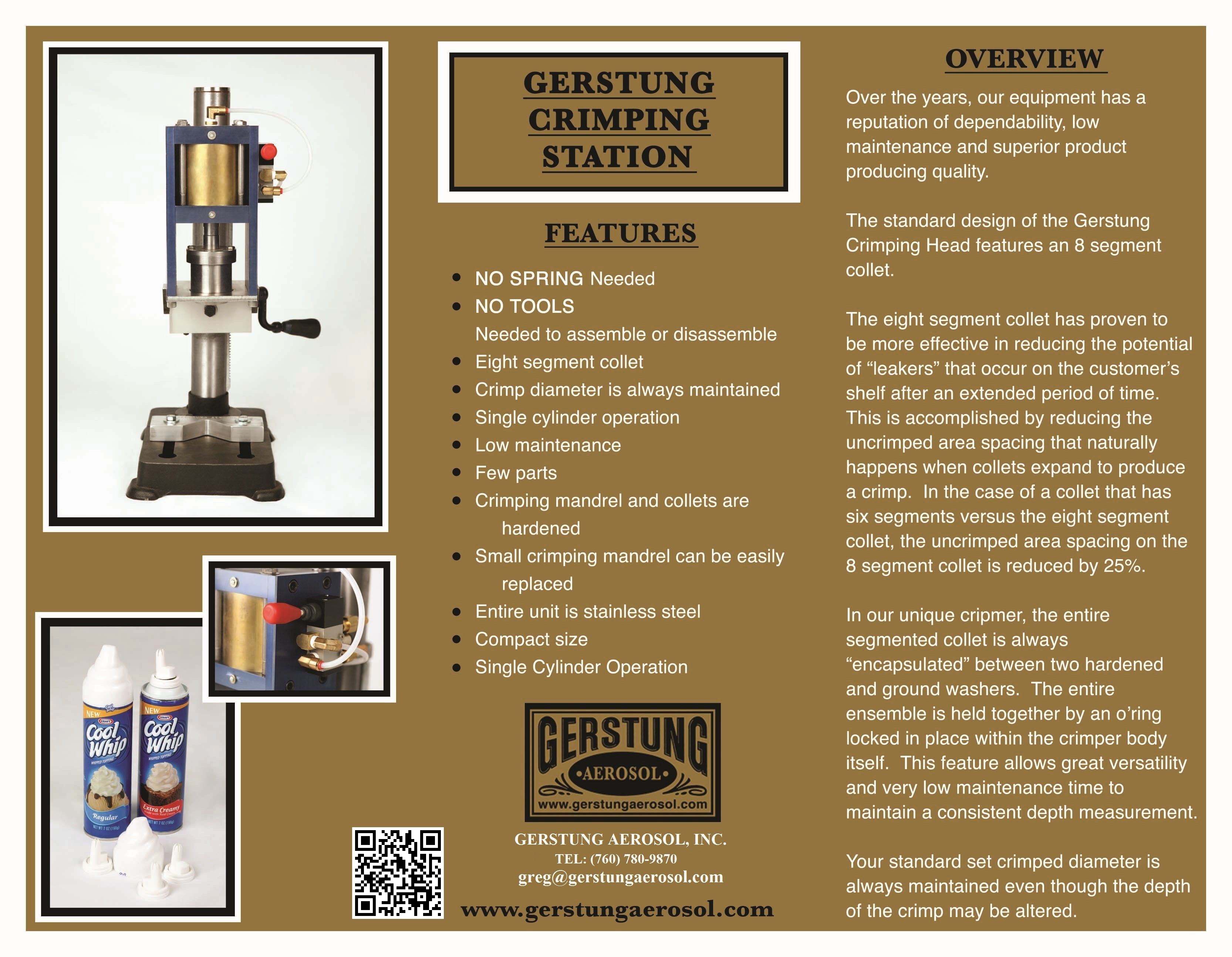

GERSTUNG Single Head Crimping Station      Download brochure, View Demo, or Get a quote

Single Head Crimper

OVERVIEW

The GERSTUNG Crimping Station features a Single air cylinder for operation. There are can diameter and height adjustments for different size aerosol containers. This unit also features our unique

NEW! GERSTUNG Aerosol Pressure Crimping Head.

SPECIFICATIONS

- Can diameter and height are adjustable.

- This unit features a side lever for operation.

- A foot pedal operation is also available as an option.

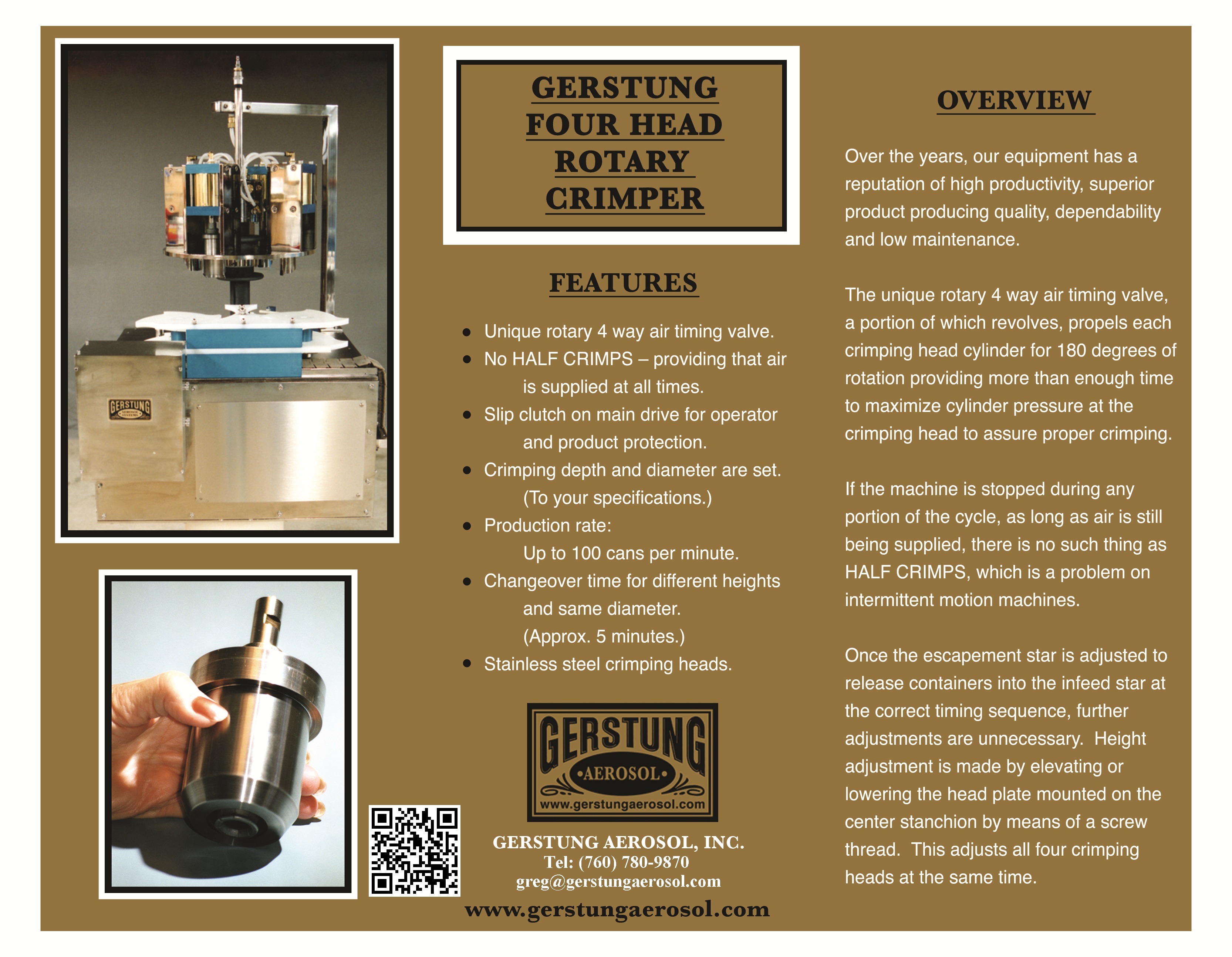

GERSTUNG Production Four Head Rotary Crimper         Download brochure or Get a quote

4 Head Rotary Crimper

OVERVIEW

The unique rotary 4 way timing valve, a portion of which revolves, propels each GERSTUNG Aerosol Pressure Crimping Head cylinder for 180 degrees of rotation providing more than enough time to maximize cylinder pressure at the crimping head to assure proper crimping. If the machine is stopped during any portion of the cycle, as long as the air is still being supplied, there are no such thing as HALF CRIMPS, which is a problem on intermittent motion machines.

SPECIFICATIONS

- Production rate: Up to 100 cans per minute.

- Changeover time: Approx. 5 minutes.

(Same can diameter with different heights).

- Accommodates various can diameters and heights.

GERSTUNG Aerosol Gasser/Shakers

The simplicity of design with precise cyclic motion lends itself to enhance absorption of propellant throughout the product more quickly and completely.

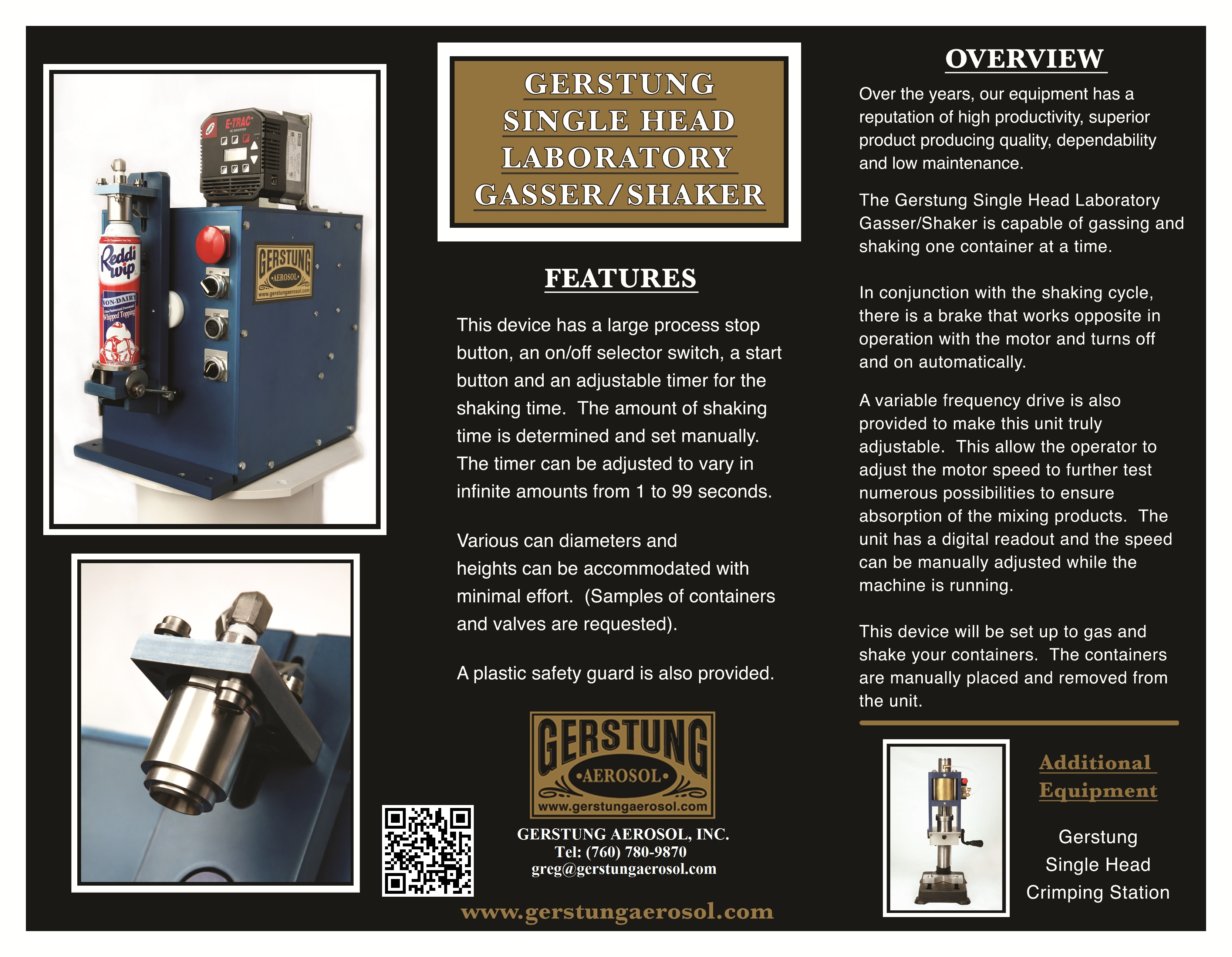

Single Head Laboratory Gasser/Shaker                              Download brochure or Get a quote

Lab Gasser Shaker

OVERVIEW

This machine features the same simplicity of design as our GERSTUNG Production Gasser/Shaker. The precise cyclic motion lends itself to enhance absorption of propellant throughout the product more quickly and completely. This machine is designed for manual operation.

SPECIFICATIONS

- Manual load and unload.

- Accommodates various can diameters and heights.

GERSTUNG 16 Head Production Gasser/Shaker Download brochure, View Demo, or Get a quote

16 Head Gasser Shaker

OVERVIEW

On a continuous running conveyor chain, the cans are released in closely knit groups (can count depending on can diameter) and presented to the gassing manifold where they are automatically stopped, raised and pressurized during agitation and released. Cans are plowed partway off the conveyor chain (upon entering the machine) to enable the machines lifting mechanism to raise them up and into the individual gassing adapters for agitation and pressurization. On completion of the agitation cycle, the cans are lowered back onto the continuous running conveyor and the conveyor rails return the cans to normal position on the chain upon discharge.

SPECIFICATIONS

- Production rate, single machine: Up to 60 cans per minute.

- Production rate, tandem setup: Up to 100 cans per minute.

- Changeover time: NONE (Same can diameter with different heights).

- Right or left hand discharge.

- Accommodates various can diameters and heights.

Technical drawings, dimensions & specifications for specific equipment are available. Please contact Gerstung Aerosol, Inc. to request a brochure, video DVD or to speak to a representative.
